Ipx5/6 Jet Hose Nozzle IEC60529

Ask Lasest Price
Brand Name :	Julixing
Certification :	ISO 17025 CNAS Test Report
Model Number :	LX-IPX5/6
Price :	Contacts us
Delivery Time :	7~9 working days
Payment Terms :	T/T,Western Union
Supply Ability :	500 Set per month

Add to Cart

Product Details
Company Profile

Ipx5/6 Jet Hose Nozzle IEC60529

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the

wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

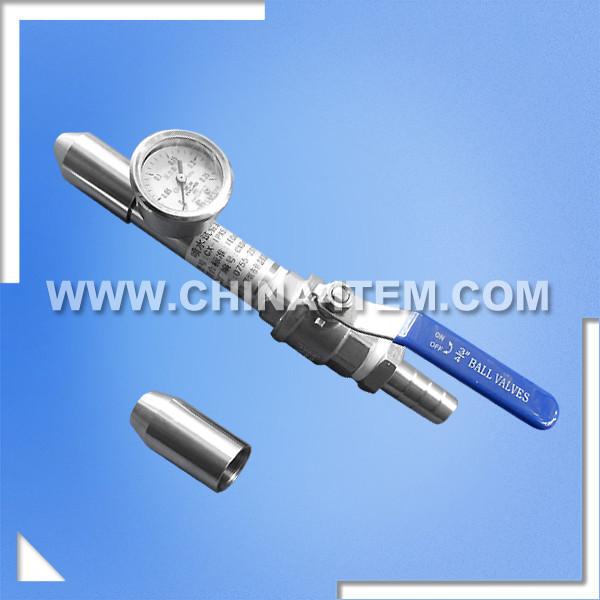

The device consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Item	IPX5	IPX6
Water supply	Water flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment.	Water flow rate > 100L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment.
The nozzle diameter	6.3 mm	12.5 mm
Water flow	12.5±0.625L/min, Flow meter is adjustable.	100±0.625L/min, Flow meter is adjustable.
Testing time	Not less than 1min/m2 (not less than 3 mins)
Environment requirements	Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation.
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel
Include	Pressure gauge, Stainless steel nozzle IPX5 and IPX6, Valve for water flow regulation and shut off, Hose connector.
