1,The rotor of a motor, a pulley, a belt, a gear, a fan, or other
moving parts shall be enclosed or guarded to reduce the risk of
injury to persons.
2,A fan blade shall be constructed of a material and in such a
manner to reduce the risk of its breakage or its release of parts
that could cause a risk of injury to persons.
3,The portion of a fan blade that can cause a risk of injury to
persons shall be guarded so that the probe shown in test finger
probe cannot touch the part when inserted with a force of1 lb(4.4
N) through any opening in the guard.
Exception: This requirement does not apply to a part or portion of
a part that must be exposed to enable a heater to perform its
intended function.

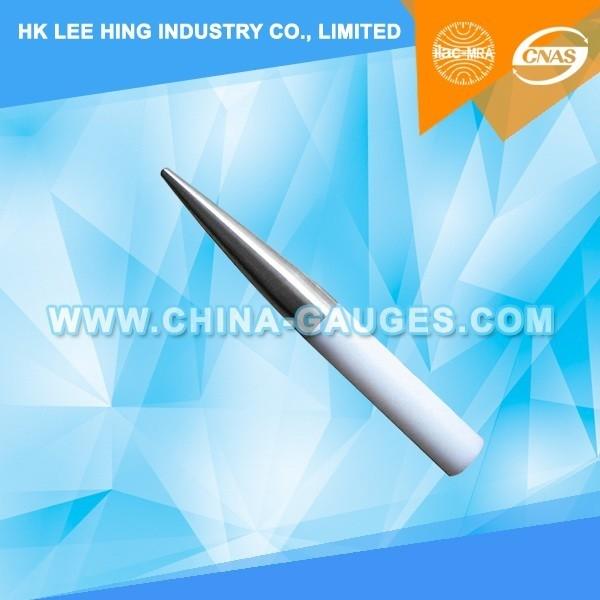

Technical parameters:
1, Total Length:88.9 mm(3.5 inch)
2, Head Length:25.4 mm(1 inch)
3, Head Radius: R3.2 mm(1/8 inch)
4, Former Head Diameter:12.7 mm(1/2 inch)
5, Tail Diameter:25.4 mm(1 inch)
6, Reference standards UL1278 figure 9.1 (PA160), UL 507 Figure 8.1
(PA160B).
