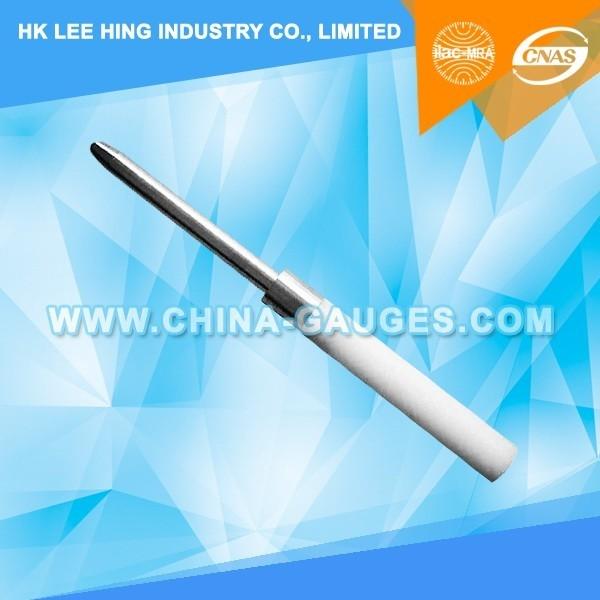

The probes referenced in Table 9.1 and illustrated in Figures 9.1
and 9.2 shall be used as measuring instruments to judge the
accessibility to uninsulated live parts and film-coated wire
provided by openings and not as instruments to judge the strength
of a material. Force is not to be applied to the probe when judging
accessibility.
Technical parameters:
Head Length: 12.7mm(1/2 inch)
Total Length: 101.6mm(4 inch)
The Head Radius: 14.3mm(9/16 inch)
Former Head Diameter: R4.8mm(3/16inch)
The Tail Diameter: 19.1mm(3/4 inch)
Reference: UL507(135A)/UL1026(PA130A)/UL1278
Company introduction
HK LEE HING INDUSTRY
CO., LIMITED are specialized in manufacturing special, custom built, test and
measuring equipment for products testing as per international norms
and offering calibration services and related information. Our products and services are used by research
& development establishments, test laboratories, defense
establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact
Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger,
AC Hipot Tester, IEC Test Probe, UL Test Probe, Material
Flammability Tester, IP Code Tester, Impact Test Apparatus,
Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap
Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester,
Electrical Safety Tester, LED Test Instruments, Environmental Test
Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances,
electrical accessories like switches, sockets, connectors, etc.
industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide
the solutions you need.
