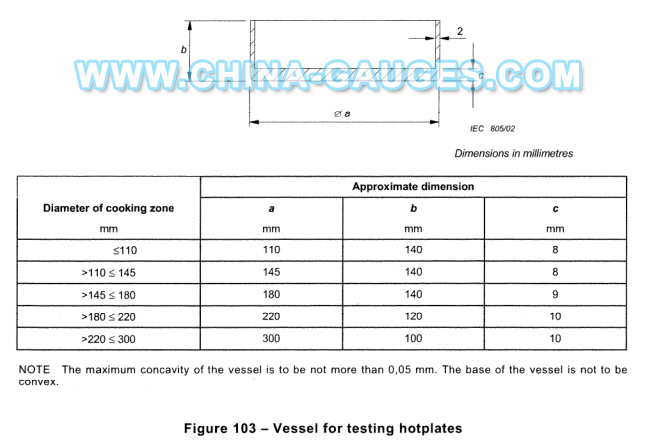

IEC60335-2-9 Figure 103 Test Vessels
1. The vessels are made of unpolished commercial quality aluminium,
have a flat bottom and are covered with a lid.
2. The vessels are met the requirements of IEC 60335-2-9 Figure
103, GB4706.14 Figure 103, EN 30-1-1 2008 (E) Annex C2, GB4706.22
Figure 101, and GB16410-2007 Figure 7 etc standards.
3. Normal operation: Hotplates, other than induction hotplates, are operated with
vessels containing water. Controls are adjusted to their highest
setting untill the water boils and then adjusted so that the water
simmers. water is added to maintain the level during boiling.
4. Parameters:
Diameter of cooking zone
mm | Approximate dimension |
a
mm | b
mm | c
mm |
| ≤110 | 110 | 140 | 8 |
| > 110 ≤ 145 | 145 | 140 | 8 |
| > 145 ≤ 180 | 180 | 140 | 9 |
| > 180 ≤ 220 | 220 | 120 | 10 |
| > 220 ≤ 300 | 300 | 100 | 10 |
NOTE: The maximum concavity of the vessel is to be not more than
0,05 mm. The base of the vessel is not to be convex.
