Main parameter:
one set with 5 pcs, the diameter is: 110 mm, 145mm, 180mm, 220mm,
300mm
Base and wall thickness: 2mm±0.5mm
The vessel is made of low carbon steel having maximum carbon
content of 0.08%
NOTE: The vessel is made of low carbon steel having a maximum
carbon content of 0,08 %. It is cylindrical without metallic
handles or protrusions. The diameter of the flat area of the base
of the vessel is to be at least the diameter of the cooking zone.
The maximum concavity of the base of the vessel is 0,006 d. The
base of the vessel is not to be convex.

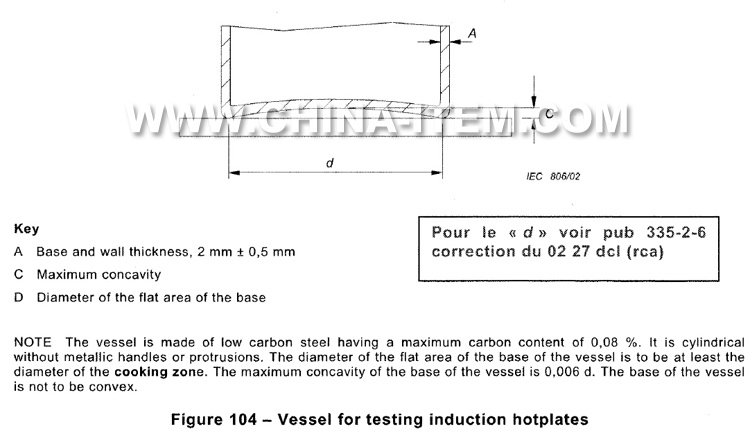

Vessel for testing induction hotplates ( IEC60335-2-9 clause 3 figure 104)
| Diameter of cooking zone(mm) | Approximate Dimension |
| Diameter (mm) | Wall highly (mm) | Bottom thickness (mm) | Wall thickness (mm) |
| ≤110 | 110 | 140 | 8 | 2 |
| >110≤145 | 145 | 140 | 8 | 2 |
| >145≤180 | 180 | 140 | 9 | 2 |
| >180≤220 | 220 | 120 | 10 | 2 |
| >220≤300 | 300 | 100 | 10 | 2 |
